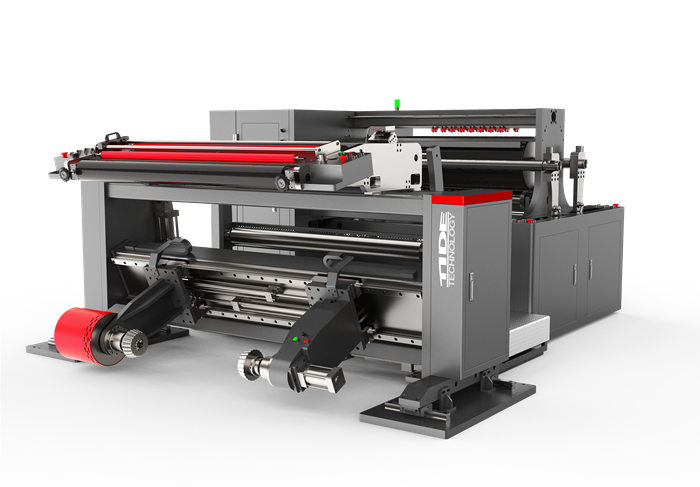

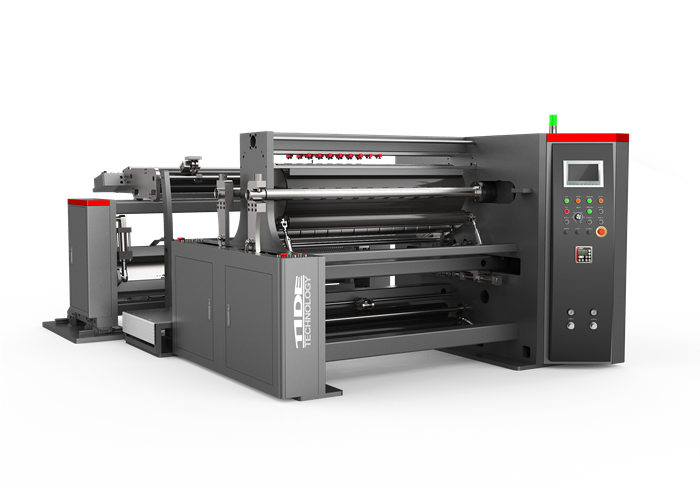

SP600 Digital Control Hi-speed Slitter

CHARACTERISTICS

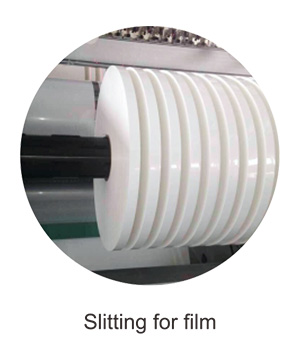

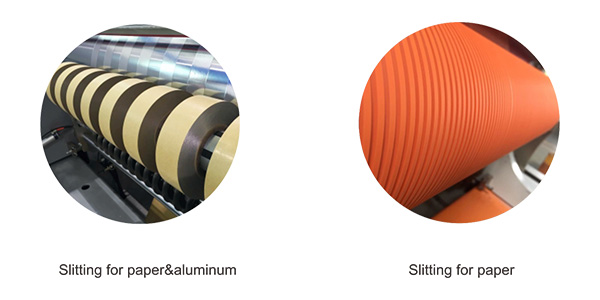

· Major for slitting light paper aluminum and film(such as tipping paper and so on)
· Splicing table with nip bars to fix the material and with the razor to cut off the material
· Reel loading automatically
· Separated tension control system
· Unwinding width adjusting automatically
· Remote Diagnosis and services
· Air shafts for rewinding
· Servo driving system
· Marking the rewinding core position by laser
· Cirlce knife slitting
· Center and surface rewinding mode
· Self diagnosis
· Maintenance information on touch screen

TECHNICAL DATA
Standard Option
· Width of rewinding: 50mm 3mm
· width of working face: 1300mm 1800mm
· Diameter of unwinding: φ800mm(max) φ1800mm(max)
· Diameter of rewinding: φ800mm(max) --
· Thickness of material: 10g/㎡-100g/㎡, 20μm-100μm more than 400g/㎡ or 300μm
· Working speed: 400m/min(max) 600m/min(max)
OPTION
* Expander roller
* Air friction shafts rewinding mode
* Stocking the finished rolls automatically
* 6 inch rewinding mode
* unloading the finished rolls automatically
* Link to ERP
