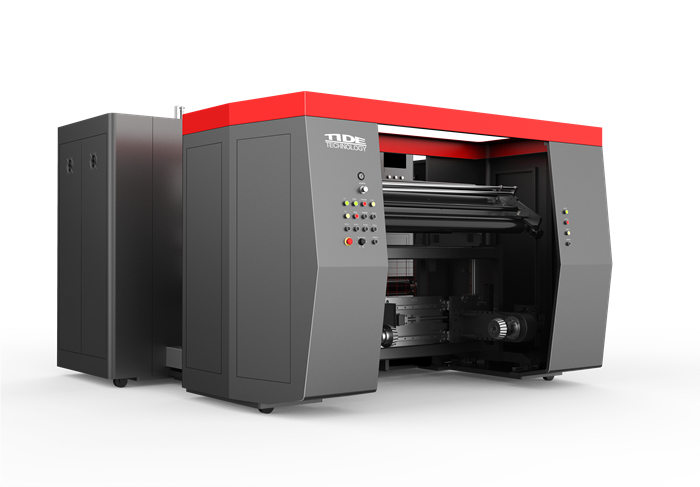

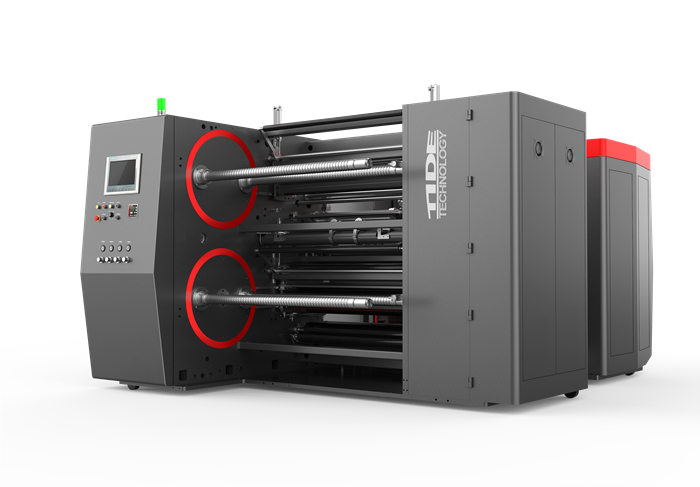

LS800 Digital Control Hi-speed Slitter

CHARACTERISTICS
· Slitting for film, paper or laminated material
· Unwinding width adjusting automatically
· Servo driving system
· Razor knife slitting
· Center rewinding mode
· Marking the rewinding core position by laser
· Unloading the finished rolls automatically
· Maintenance information on touch screen
· Unwinding roll loading sami-automatically
· Splicing table with nip bars to fix the material
· Separated tension control system
· Air friction shafts for rewinding

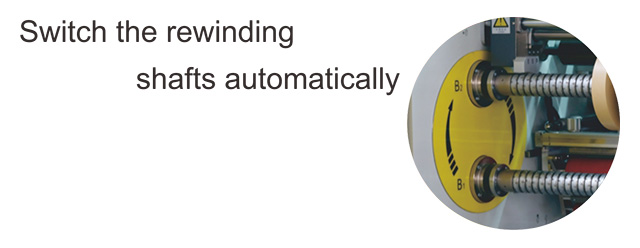

· Switch the rewinding shafts automatically
· Self diagnosis
· Remote diagnosis and services

TECHNICAL DATA
Standard Option
· Width of working face: 1300mm 1800mm(max)
· Diameter of unwinding: φ800mm(max) φ1200mm(max)
· Thickness of material: 12μm-150μm more than 150μm
· Diameter of rewinding: φ600mm(max) --
· Width of rewinding: 50mm(min) 25mm(min)
· Working speed: 800m/min(max) 1000m/min(max)
OPTION
* Expander roller
* Circle knife slitting mode
* Air hole on line
* Gap roller rewinding mode

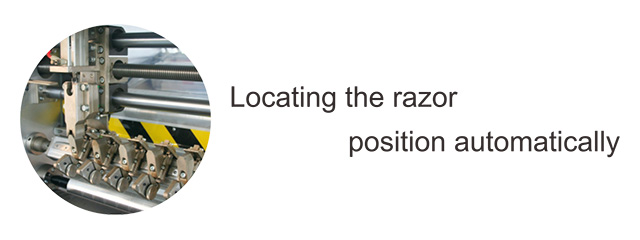

* Locating the razor position automatically
* Automatically tape system for finished rolls and new cores
* Dancing roller
* Easy tear on line
* Stop by pictures accounting
* 6 inch rewinding mode
* Link to ERP
* Automatically web cutting system
