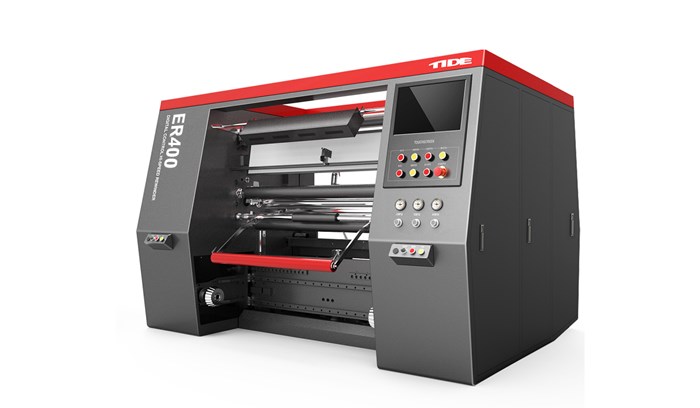

ER400 Digital Control Hi-speed Rewinder

CHARACTERISTICS
· Rewinding and inspecting for film, paper or laminated material
· Splicing table with nip bars to fix the material
· Separated tension control system
· Shaftless with air chucks for rewinding
· Maintenance information on touch screen
· Servo driving system
· Center rewinding mode
· Unwinding roll loading sami-automatically
· Self diagnosis
· Remote diagnosis and services
TECHNICAL DATA
Standard Option
· Width of working face: 1300mm 1800mm
· Diameter of rewinding: φ800mm(max) φ1200mm(max)
· Thickness of material: 12-120μm more than 120μm
· Diameter of rewinding: φ800mm φ1200mm
· Working speed: 400m/min(max) 500m/min(max)
OPTION

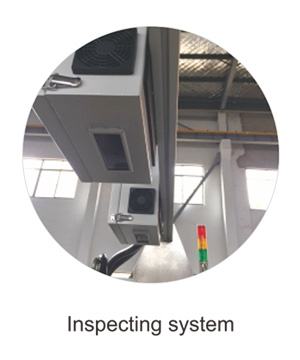

* Intergration of inspection system
* Easy tear of line
* Stop by pictures accounting
* Unwinding width adjusting automatically
* Trim edge slitting system
* Air hole on line
* Link to ERP
