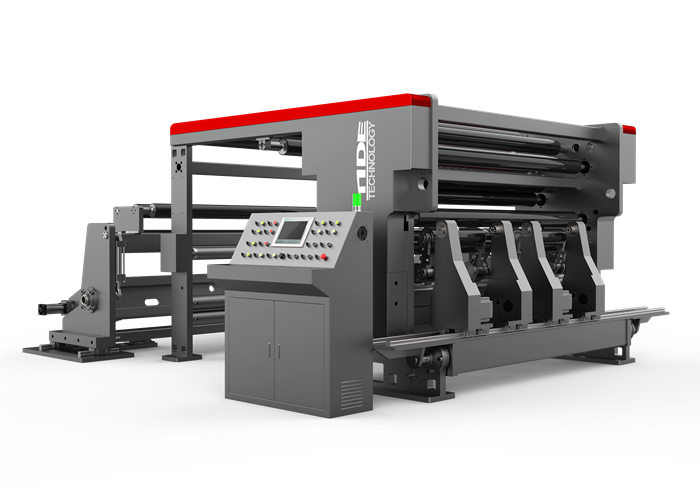

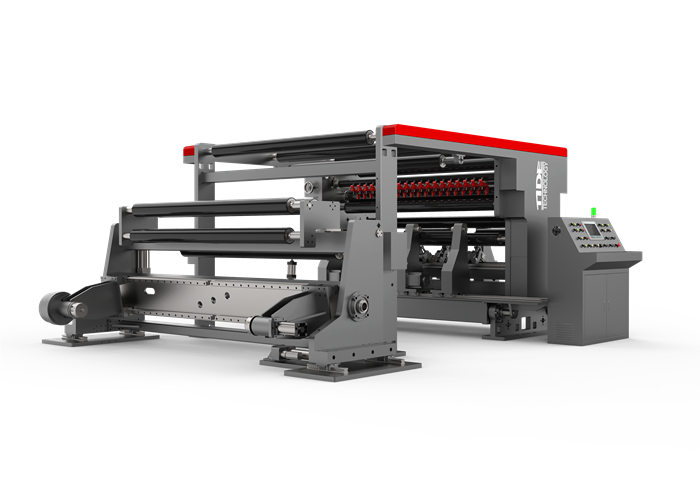

KS600 Digital Control Hi-speed Slitter

CHARACTERISTICS
· Sliting for base material(such as BOPP/CPP/VMCPP/VMPET and so on)
· Unwinding width adjusting automatically
· Expander roller
· Separated tension control system
· Shaftless with chucks
· Razor knife slitting
· Self diagnosis
· Remote diagnosis and services
· Dancing roller
· Servo driving system
· Independent rewinding unit for each rewinding roll
· Trolleys for unloading the finished rolls form the rewinding units at each side automatically
· Unwinding rolls loading sami-automatically
· Maintenance information on touch screen

TECHNICAL DATA
· Width of working face: 1800-10000mm
· Diameter of unwinding: φ1500mm(max)
· Thickness of material: 3μm(min)
· Diameter of rewinding: φ1500mm(max)
· Width of rewinding: 100mm(min) 3000mm(max)
· Working speed: 1000m/min(max)
OPTION
* Air friction shafts rewinding mode
* Link to ERP
* Locating the razor position automatically
* Circle knife slitting
