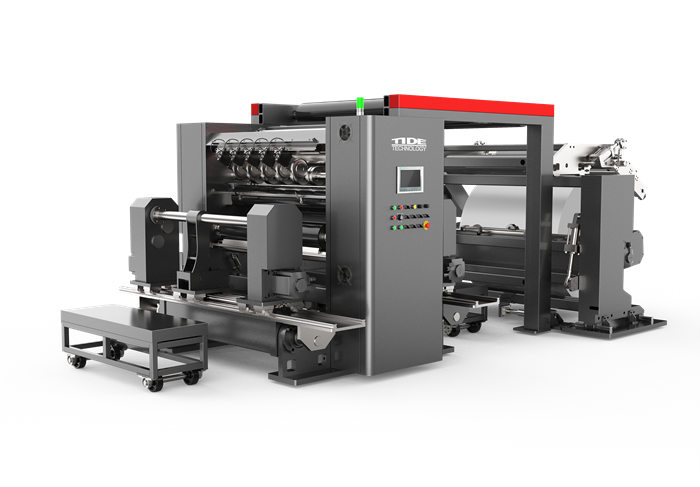

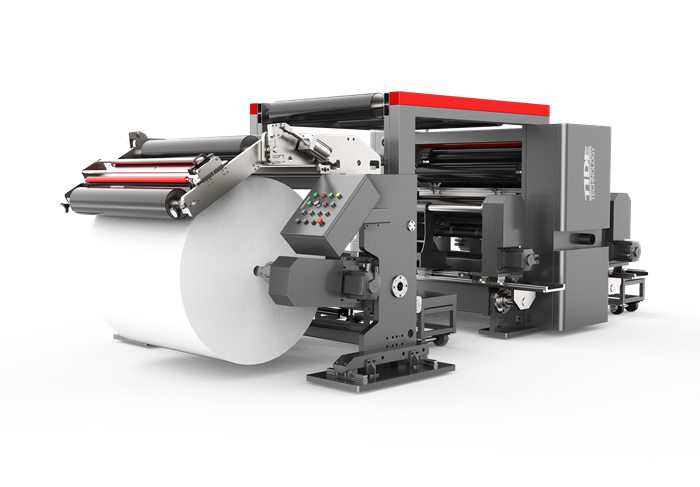

KS300 Digital Control Hi-speed Slitter

CHARACTERISTICS
· Sliting for heavy paper and film sheet(such as tetra pack for milk and juice)
· Unwinding width adjusting automatically
· Dancing roller
· Servo driving system
· Circle knife slitting
· Independent rewinding unit for each rewinding roll
· Trolleys for unloading the finished rolls form the rewinding units at each side automatically
· Reel loading automatically
· Splicing table with nip rolls to fix the material
· Expander roller
· Separated tension control system
· Dust proof and clean automatically
· Shaftless with chucks
· Maintenance information on touch screen
· Self diagnosis
· Remote diagnosis and services

TECHNICAL DATA
Standard Option
· Width of working face: 1300mm 3000mm(max)
· Diameter of unwinding: φ1300mm(max) φ1800mm(max)
· Thickness of material: 50g/㎡-400g/㎡ 500g/㎡
· Diameter of rewinding: φ1300mm(max) φ1800mm(max)
· Width of rewinding: 300mm(min) 300mm(min)
· Working speed: 300m/min(max) 500m/min(max)
OPTION
* Stop by pictures accounting
* Air friction shafts rewinding mode
* Link to ERP
